ISMATEC® Peristaltic Pumps

ISMATEC® Peristaltic Pumps


Features Unique to ISMATEC® pumps
  • Convex rollers and concave tube- bed:
    • Treats the liquid gently (e.g. living cells)
    • Improves the delivery stability
    • Increases the repeatability
    • Guarantees optimum tube centering
    • The tube is progressively closed starting from the center outwards



  •  Changing the tube within 5 seconds:
    • The Flowmaster pump-head with flow rates up to 13 l/min
    • Disassembling the pump-head in less than 1 minute



  •  Carrying out programs independently of a PC:
    • Creates the application profile in the PC (with ProgEdit software)
    • Downloads the file data into the pump memory
    • Disconnect the pump from the PC
    • Carries out your application on the spot, using the pump as a stand-alone unit



  • Unique Coupling system:
    • The MCP and BVP drives enable the user to mount a wide range of different pump-heads
    • The pump-heads are interchangeable within seconds without using a tool
    • More than 14 peristaltic pump-heads are available (1 with PTFE tubing)



Types of Peristaltic pumps
1.     Tubing pumps : 4 to 24 channels ( Flow rates : 0.4µl/min – 44ml/min)

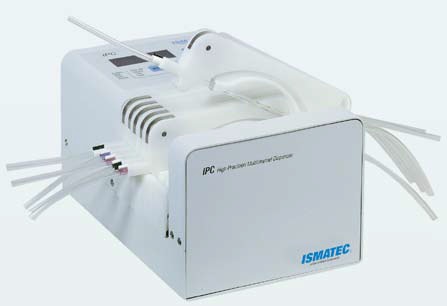

  • IPC/IP and IPC- N/ IP – N
    • Lowest pulsation , highest accuracy.
    • Ideal for analytical applications
    • Very high repeatability on all channels
    • Planetary drive

 2.   Tubing pumps : 2 to 4 channels ( Flow rates 0.001 – 68 ml/min)

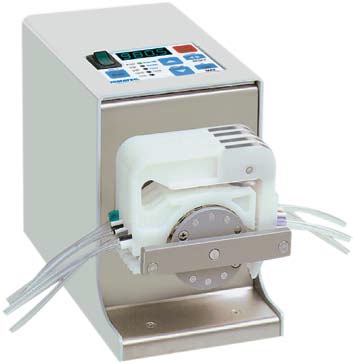

  • Reglo Analog/ Digital
    • The smallest calibrate able dispensing pump
    • Very low pulsation ( model with 12 rollers)
    • High repeatability
    • 10cm wide, 13.5cm high

3.    Single Channel Tubing pump ( Flow rate : 2.1 – 230 ml/min)

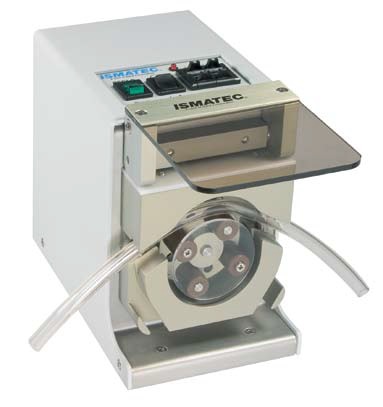

  • Reglo Quick™
    • Very fast tubing change- over
    • Unique, very user friendly pump head with fast tubing change over
    • Variable speed
    • Standard tubing
    • 10cm wide, 14.3cm high

 4.   Tubing Pumps : 1 to 8 Channels (Flow rates: 0.003 – 5400 ml/min)

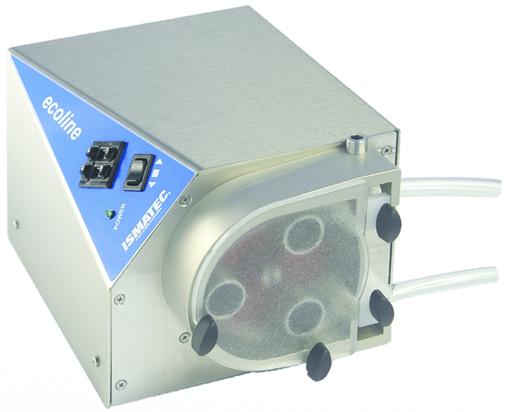

  • Ecoline
    • Economical and powerful
    • Stackable pumps for dispensing and filling applications with variable flow rates
    • Robust Stainless Steel housing ( stackable)
    • 2 – digit potentiometer adjustable in 1% steps

Peristaltic Pump Systems with Interchangeable pump heads
  • Easily interchangeable pump heads
  • Mount the pump head without using a tool
  • BVP and MCP drives enable the user to choose individually from a wide variety of pump heads.
  • No of channels: 1 – 24
  • Flow rates range from 0.001ml/min to 3700 ml/min

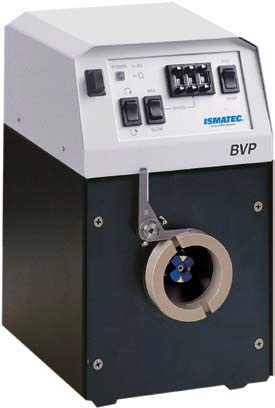

1.   BVP Standard
  • Economical
  • Robust, Powerful Drive
  • Variable speed
  • Without dispensing functions
  • 3 digit potentiometer for speed setting

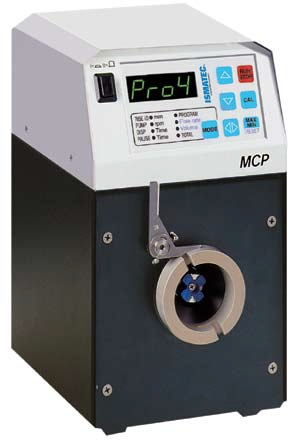

2.    MCP Standard
  • Multi- Purpose
  • Robust, Powerful Drive
  • Ideal for dispensing and filling
  • Pre programmed tube sizes and pump heads allow to work with flow rates
  • Membrane keypad, LED Display
  • 4 program memories for saving individual application parameters

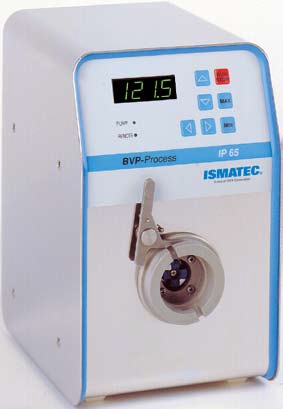

 3.     BVP Process
  • Washdown
  • Protection rating of IP 65
  • Extremely robust drive
  • Microprocessor controlled
  • Ideal for applications in a dusty, humid or corrosive environment and in clean room areas
  • Without dispensing functions
  • Membrane keypad for speed setting, LED Display
  • Stainless steel housing

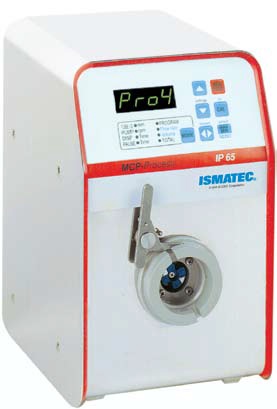

4.     MCP Process
  • Programmable
  • Programs can be carried out on the spot, independently of a PC
  • Protection Rating of IP 65
  • Extremely robust drive, suitable for industries
  • Ideal for dispensing and filling applications in a dusty, humid or corrosive environment and in clean room areas.
  • Pre programmed tube sizes and pump heads allow to work with flow rates
  • Membrane keypad, LED Display
  • 4 program memories for saving individual application parameters or PC programmed command sequence

Pump Heads for BVP and MCP Models
1.    Single Channel Pump Heads
2.    Multi Channel Pump Heads



Heavy Duty Peristaltic Pumps

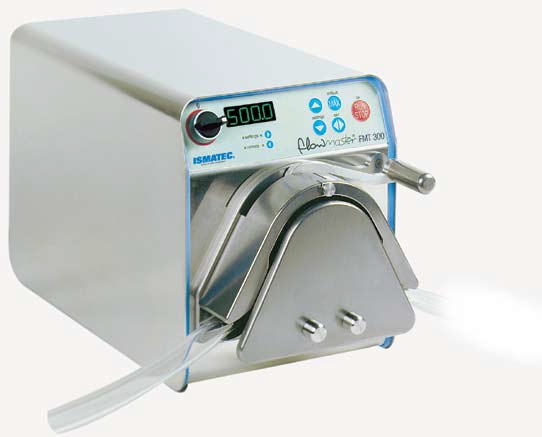

  • Flowmaster® ( Flow rate : 37ml/min – 13 l/min)
    • Ideal for heavy duty processes
    • 1 channel, 3 rollers
    • The most convinving solution for fluid transfer in biotechnology, as well as pharmaceutical, food and beverage industries.
    • Ideal for dispensing and filling applications in a dusty, humid or corrosive environment and in clean room areas
    • Convex rollers treat liquid and tubing gently
    • Protection Rating of IP 65

Click here to view various tubings available for pumps
